Features

• Cycle progresses manually by open/ close manual valves through conditioning, sterilizing, exhaust drying and venting phases.
• Sterilize temperature is adjustable from 121° C to 132° C on temperature regulator.
• Sterilize time and drying time is adjustable from 0 – 60 minutes on timer.
• Illuminated pilot lamps display status and a buzzer announces the completion and cuts off the heating power source.
• The large diameter of chamber pressure gauge, jacket pressure gauge and thermometer make ideal require reading and indicate high
• precision and consistent results.
• Integral steam generator equips with a high efficient immercion heater and temperature regulator to provide strict control of heating
• temperature.
• Specially designed vacuum drying device to ensure efficient drying function.
• Automatic air venting device and steam trap discharges cool air and condensate from chamber to obtain effective saturated steam.
• An effective HEPA air filter is used to prevent contamined air from entering into the chamber
• Chamber door is manually operated and actuated by rotating a door handle.
• The silicone-rubber sealing gasket is applied to an even pressure door seal.
• Cylinder chamber provides a large capacity to satisfy a wide range of sterile processing needs.
• Chamber is made if high quality SUS 316 stainless steel with polished surface for long lasting service and easy cleaning. A double layer
• construction is thermally insulated with fiberglass and cover with stainless steel sheet.
• Pressure vessel is mounted on a heavy-duty tubular stainless steel stand with floor flanges for level adjustment.

Safety devices

• Door interlock : door safety locking device keep door from being opened while chamber is pressurized during cycle.
• Safety valve : releasing steam in case of excessive chamber pressure.
• Low water protection device : low water in steam generator will actuate audible alarm and protective device cut off the heating source
• immediately.
• Circuit protection device : circuit breaker and fuse protects control units when short circuit or overload occurs.
• Emergency exhaust : manual exhaust to vent the chamber and remove the load in the event of a power outage.

Norms and standards

• Manufacturer correspond with quality system certified to GMP Taiwan

Accessories

• Bottom shelf x 1
• Operation manual x 1

Options

• Automatic feed water device

Notes

• Sterilizer is warranted to one year, exclude consumable (heater, gasket, HEPA air filter etc)

Specifications

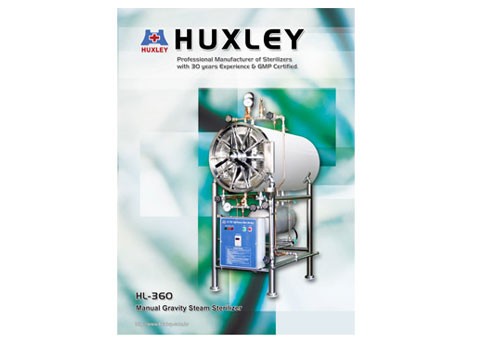

• HL 360
• Chamber size (mm) : Ø450 x D950
• Volume (L) : 151
• Overall Dimensions (mm) : W660 x H1650 x D1420
• Net Weight (kg) : 220
• Cycle Process : Manual
• M.A.W.P (kg/cm3) : 2.5
• Design Temperature (°C) : 138
• Working Temperature (°C) : 121 ~ 132
• Timer (mins) : 0 ~ 60
• Electric power (kw) : 9
• Power : 220/ 380V, 1PH/ 3PH, 50/ 60Hz
• Chamber Material : Stainless steel SUS316
• Jacket, Chamber Door &
• Shell Material : Stainless steel SUS304
