Plasma:
Plasma  was referred  to a group  of positive  ions and electrons  with an electric  charge by electrical  discharge.
Plasma is known as the fourth state of material other three states of material (solid, liquid, and gas). When gas is applied with a greater energy (RF power), it becomes plasma with ionized elements. As the number of positive and negative ions compesates each other, the overall electrical property of plasma becomes neutral.

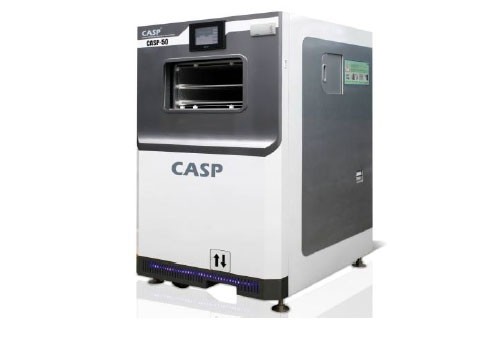

CASP hydrogen peroxide low temperature  plasma sterilization method which integrates hydrogen peroxide with low temperature  plasma technology.  During the sterilization  process, diffuse vaporized hydrogen  peroxide into each corner of chamber, and generate plasma and the ionized hydrogen peroxide kill bacteria/microorganism

Technology     :
Vacuum phase
Air is drawn from the chamber
1st Injection, diffusion and Plasma

The first injection of H2O2 is 4 mm. The H2O2   is drawn out with motor DC into small circular-shaped  chamber. In this small chamber the liquid is heated until 72°C with the heater band
In this diffusion process the liquid is turned into gas, into the big chamber.  Vacuum is reactivated once again to drawn  out some  of the gas.   After  that,  make  a Plasma  ( The  existed  gas  in the  chamber  applied  with  high frequency of RF POWER with the energy of 500KHz, 300~800 watt (automatic matching) to create plasma and
2nd Injection, diffusion and Plasma

The second injection of H2O2 is 4 mm. The H2O2   is drawn out with motor dc into small circular-shaped  chamber. In this small chamber the liquid is heated until 72°C with the heater band
In this diffusion process the liquid is turned into gas, into the big chamber.  Vacuum is reactivated once again to
drawn  out some  of the gas.   After  that,  make  a Plasma  ( The  existed  gas  in the  chamber  applied  with  high frequency of RF POWER with the energy of 500KHz, 300~800 watt (automatic matching) to create plasma and Exhaust
Chamber is vented.

Special Advantages     :

• Save Cost, it is an economical operation sterilizer
• Operating easy, it is a digitalization sterilizer
• Strong sterilization ability, sterilization effect meets SAL 10 -6 Standard
• Only need a power supply, it’s and easy installation sterilizer
• USB connector
• Foot Controller for open/close door, it is easy to open/close door, eventhough the user can not use his/her hands.
• Transitor RF Power
• Self developed chemical indicator ink
• Store 4000 cycles data
• Self -research measuring cup injection technology
• Professional after-sales service network


Technical Specification  :

• Electronic Requirements  : 220V±22V 50/60HZ
• Monitor : 7 " TFT Color LCD Touch Screen
• Power Consumption :  3.5KW
• Overall size (L/W/H)  :  910x755x1680
• Weight (Approx)  :  360kg
• Chamber Material  :  Aluminium Alloy Chamber
• Size (MM)  :   396(L) x 236(W) x 585(D)
• Chamber Volume :  55L
• Usable Chamber Volume  :  50L
• Liquid Chamber Agent   :  Hydrogen Peroxide (55-60%)
• Injection (cycle)  :  2.5ml x 2 times
• Cycle Temperature Range  :  45 ± 5°C
• Sterilization cycle time  :  Fast : 18 min
• Normal : 36 min
• Super : 42 min
• Data Storage (4000 cycles)  :  YES
• Noise  :  ≤ 60dB
• Sterilizing Guarantee  :  - Stainless steel lumen I.D ≥ 1 mm, Length ≤ 50 cm

Standard Accessories :

• Agent     :     6pcs
• Chemical Indicator Strip     :     250 strips x 2
• Chemical Indicator Label     :     2 rolls
• Chemical Indicator Pack     :     Widht: 75-300mm ; one roll for each specification
• Biological Indicator     :     30 pcs
• Biological Indicator Incubator     :     1 pc
• Cloth     :     150 pcs
• Appliance Box     :     2 pcs
• Temperature Sensing Printer Paper     :     20 rolls
• Vacuum Pump Protector     :     3 pcs
• Air Filter     :     2 ea

Materials Allowed     :

• Alluminium Cooper Stainless Steel Acetal Resins Glass
• Liquid Crystal Polymer (LCP) Polyvinyl chloride (PVC) Polystyrene
• Polypropylene  sulfone
• Polymenthyl methacrylate (PMMA) Polytheretherketone (PEEK) Titanium
• Polytetrafluoroethylene (Teflon)
• Silicone elastomers
• Polycarbonate
• Polymer
• Polythylene
• Polymide
• Polyetherimide  (PEI)
• Polyurethane

Medical Devices Allowed    :

• Stereotactic equipment
• Defibrillator paddles
• Electrotrocautery instruments
• Esophageal dilators
• Cranial pressure transducer cables
• Resectoscope/working element and sheaths
• Ophthalmic lenses (diagnostic, magnifying)
• Laser handpieces, fibers, and accessories
• Fiberoptic light cables
• Surgical Power equipment and batteries
• Cryoprobes
• Pigmentation handpieces
• Radiation therapy equipment
• Dopplers
• Video cameras and couplers
• Metal instruments
• Ultrasound probes
• Endoscopic instruments
• Rigid endoscopes
• Laryngscope blades
• Trocar sheaths
• Patient leade cables
• Shaver handpieces

Single-Channel  Stainless Steel Lumens    :

• Inside diameter: I.D. ≥ 1 mm, Lenght: L ≤ 300 mm, Normal mode
• Inside diameter: I.D. ≥ 1 mm, Lenght: L ≤ 500 mm, Superl mode

Single-Channel  Teflon/Polythylene Lumens    :

• Inside diameter: I.D. ≥ 1 mm, Lenght: L ≤ 500 mm, Normal mode
• Inside diameter: I.D. ≥ 1 mm, Lenght: L ≤ 2000 mm, Super mode

Certifications    :

• CE 0482
• ISO 13485 & ISO 14937
• Free Sale Certificate
• ISO 9001
• Letter of Patent
• Ministry of Health documents

Optional Accessories

Sealer
Overall size (L/W/H)     :     555Lx314Wx225H(mm)
Electronic Requirements     :     220 ± 22V 50/60 HZ
Power Consumption     :     230W

Cutter
Overall size (L/W/H)     :     927Lx360Wx190H(mm)
Weight     :     8kgs
Max Cutting Width     :     730mm
